The patented Yellow Jacket Plug Shoot Firing Head™ (PSFH) does the job of five tools. By connecting the setting tool directly to the gun string, the PSFH ensures a stronger, shorter, and more affordable tool configuration.
Features
• Eliminates the need for a switch sub, blast sleeve, plug shoot adapter, quick change and traditional firing head to connect the setting tool
• Tool configuration is shortened by up to 29.28″ when combined with Yellow Jacket’s Direct Connect Sub
• Fewer components, o-rings, and electrical connections reduce the risk of misrun
• Optimal for tight radius well geometries
• Configured to work exclusively with Yellow Jacket Pre-wired Complete and Pull & Play guns.
Features
• Eliminates the need for a switch sub, blast sleeve, plug shoot adapter, quick change and traditional firing head to connect the setting tool
• Tool configuration is shortened by up to 29.28″ when combined with Yellow Jacket’s Direct Connect Sub
• Fewer components, o-rings, and electrical connections reduce the risk of misrun
• Optimal for tight radius well geometries
• Configured to work exclusively with Yellow Jacket Pre-wired Complete and Pull & Play guns.
WIRELINE ADAPTOR KIT
• Outer Diameter: 2 3⁄4″, 3 1⁄8″, 3 3⁄8″
• Yellow Jacket Port Plug
• Titan Port Plug
PATENTS
• 9476289
• 10858920
• 9598942
• AR097656B1
WIRELINE ADAPTOR KIT
• Outer Diameter: 2 3⁄4″, 3 1⁄8″, 3 3⁄8″
• Yellow Jacket Port Plug
• Titan Port Plug
PATENTS
• 9476289
• 10858920
• 9598942
• AR097656B1
The patented Yellow Jacket Plug Shoot Firing Head™ (PSFH) does the job of five tools. By connecting the setting tool directing to the gun string, the PSFH ensues a stronger, shorter, and more affordable tool configuration.
Features
• Eliminates the need for a switch sub, blast sleeve, plug shoot adapter, quick change and traditional firing head to connect the setting tool
• Tool configuration is shortened by up to 29.28″ when combined with Yellow Jacket’s Direct Connect Sub
• Fewer components, o-rings, and electrical connections reduce the risk of misrun
• Optimal for tight radius well geometries
• Configured to work exclusively with Yellow Jacket Pre-wired Complete and Pull & Play guns.
Features
• Eliminates the need for a switch sub, blast sleeve, plug shoot adapter, quick change and traditional firing head to connect the setting tool
• Tool configuration is shortened by up to 29.28″ when combined with Yellow Jacket’s Direct Connect Sub
• Fewer components, o-rings, and electrical connections reduce the risk of misrun
• Optimal for tight radius well geometries
• Configured to work exclusively with Yellow Jacket Pre-wired Complete and Pull & Play guns.
WIRELINE ADAPTOR KIT
• Outer Diameter: 2 3⁄4″, 3 1⁄8″, 3 3⁄8″
• Yellow Jacket Port Plug
• Titan Port Plug
PATENTS
• 9476289
• 10858920
• 9598942
• AR097656B1
WIRELINE ADAPTOR KIT
• Outer Diameter: 2 3⁄4″, 3 1⁄8″, 3 3⁄8″
• Yellow Jacket Port Plug
• Titan Port Plug
PATENTS
• 9476289
• 10858920
• 9598942
• AR097656B1

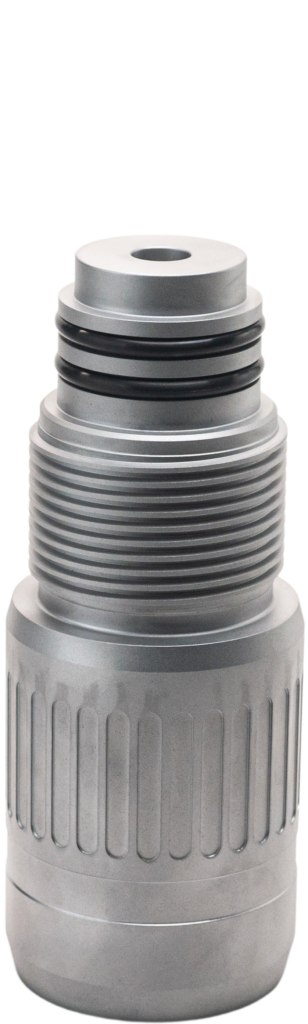

CONFIRMED SET PSFH SINGLE-USE MODULE
This single-use module has the addressable switch pre-installed (pre-wired) and accommodates an 074-style igniter. When the setting tool is fired, the switch is exposed to the hot gases, burns up, and is no longer visible in the shooting software. This provides confirmation that the igniter fired and the power cartridge burned.
STANDARD PSFH REUSABLE SWITCH CARTRIDGE
The Standard PSFH includes a Reusable Switch Cartridge that has the switch pre-installed (pre-wired). It uses a separate Igniter Holder designed specifically for an 074 style igniter with an integrated pressure bulkhead. The pressure bulkhead protects the switch from the hot gases thereby permitting it to be reused.
STANDARD PSFH REUSABLE SWITCH CARTRIDGE
The Standard PSFH includes a Reusable Switch Cartridge that has the switch pre-installed (pre-wired). It uses a separate Igniter Holder designed specifically for an 074 style igniter with an integrated pressure bulkhead. The pressure bulkhead protects the Switch from the hot gases thereby permitting it to be reused.
